Bluetooth Module

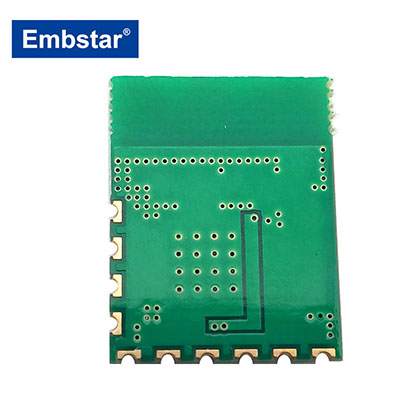

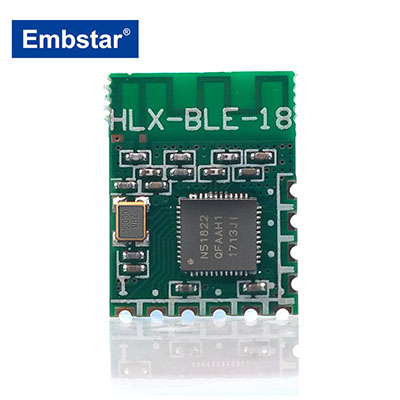

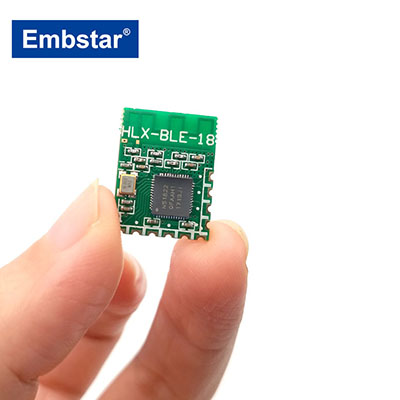

  • nRF 51822 Bluetooth 4.0 Module HLX-BLE-18
  • nRF 51822 Bluetooth 4.0 Module HLX-BLE-18
  • nRF 51822 Bluetooth 4.0 Module HLX-BLE-18
  • nRF 51822 Bluetooth 4.0 Module HLX-BLE-18
nRF 51822 Bluetooth 4.0 Module HLX-BLE-18nRF 51822 Bluetooth 4.0 Module HLX-BLE-18nRF 51822 Bluetooth 4.0 Module HLX-BLE-18nRF 51822 Bluetooth 4.0 Module HLX-BLE-18

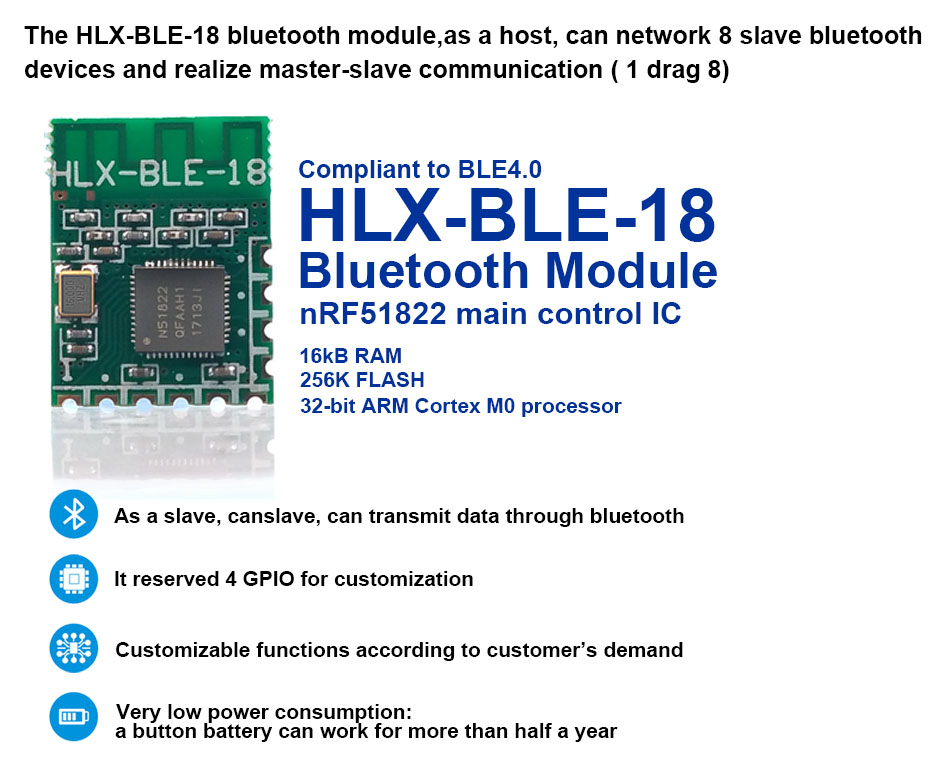

nRF 51822 Bluetooth 4.0 Module HLX-BLE-18

  • nRF51822
  • 32-bit ARM Cortex M0 processor
  • 256K FLASH
  • 20mmx 15mmx2mm
  • Product description: nRF 51822 Bluetooth Module for IOT
  • INQUIRY


The main control chip is Nrf51822, lower power consumption,the tiny body can be placed in a limited place, two times the development of convenience.Can be customized based on customer’s required.


Applications

n Industrial remote control

n Industrial Telemetry

n POS System

n Portable battery-powered medical devices

n Automated Data Collection

n Bluetooth remote control toys

n Bluetooth Printer

n Smart Home

n Industrial Control

n Internet of things

n Key Finder,Tracker

n iBeacon Location Based Service

n Bluetooth Mouse

n Bluetooth Keyboard

Features

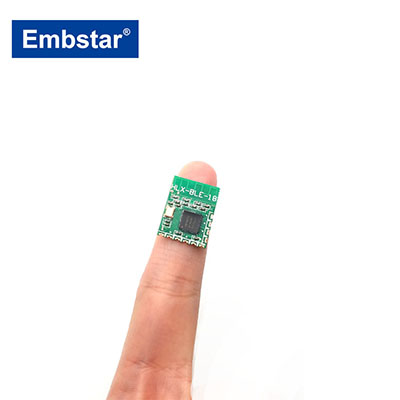

n Small Module Size 20mm x 15mm x 2.0mm

n Compliant to BLE4.0

n Battery life 0.5 years

Specifications

n nRF51822 main control IC

n 32-bit ARM Cortex M0 processor

n 256K Flash

n 16kB RAM

n Peak Current RX-13mA,TX-10.5mA,0dBm

n Operating Temperature -40℃~85

n Tx Power 4dBm

n Ethernet UART(TTL)

n Baud rate 38400bps

n Transmission distance 30~100M open field

n Communication speed 1Mbps

n Frequency 2.4GHz ISM band
