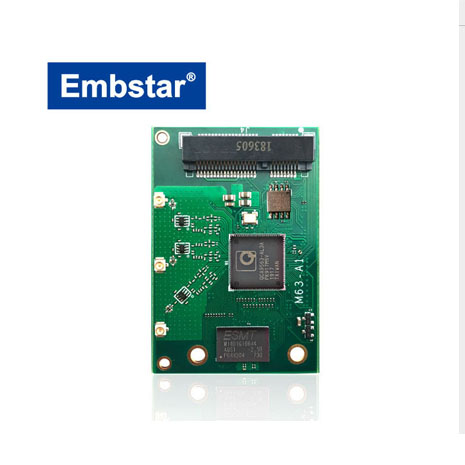

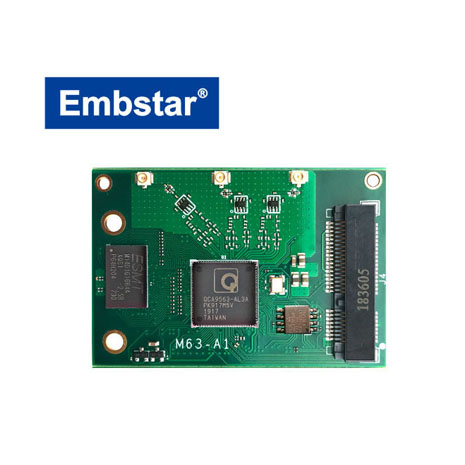

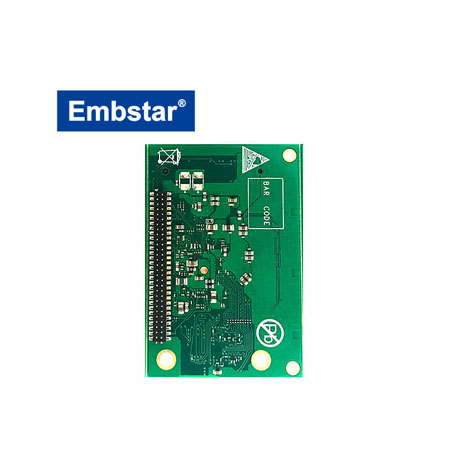

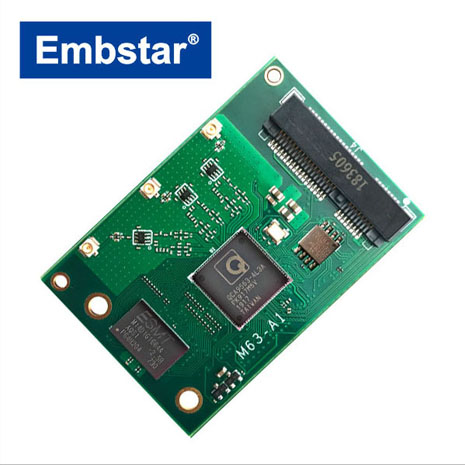

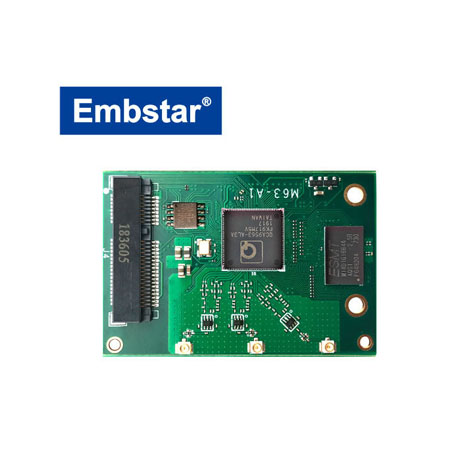

QCA9563 WiFi AP Module M63

M63 WiFi  AP Module Overview

M63(QCA9563 Module) is a complete, small form factor 802.11b/g/n Wi-Fi Solution optimized for low power, low-cost, and highly integrated AP andconsumer electronic devices, themodule integrates all Wi-Fi functionalityina package friendlyto low-cost PCB design, requiringonly a few external3.3V and connection toantenna.

The module based on the single chip QCA9563 which integrates an802.11n 3x3 MIMO MAC/BB/ radio with internal PA and LNA. It supports 802.11n operations up to 216 Mbps for 20MHZ and 450 Mbps for 40MHZ,and 802.11b/g data rates.

The module supports AP mode and client mode at the same time and include mass service application software to reduce the research and design work ofcustomer.

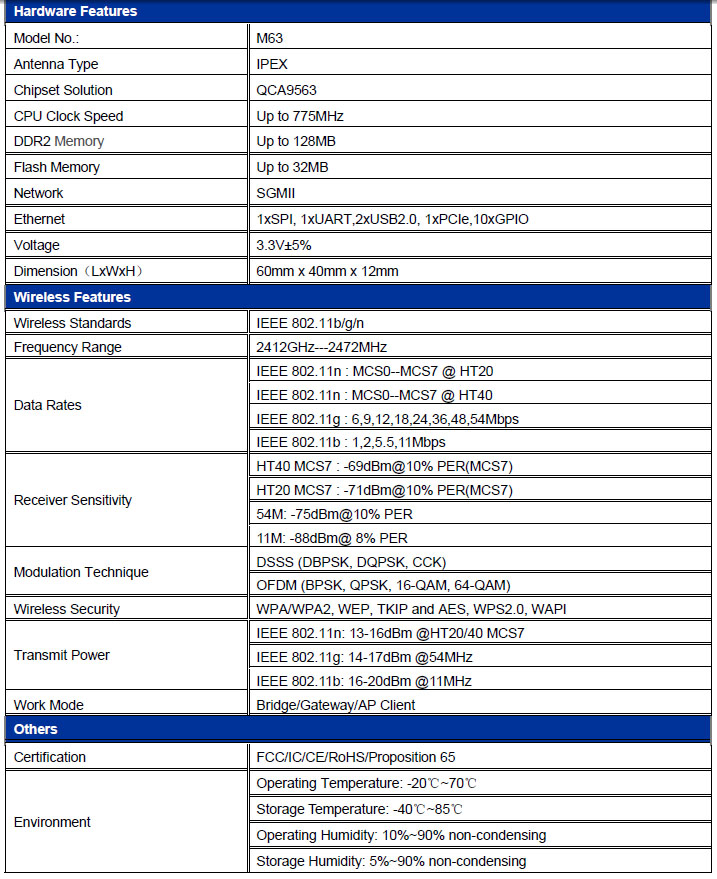

M63 WiFi  AP Module Features

M63 WiFi  AP Module Applicitions

---WiFi AP

---3G/4G WiFi Router

---WiFi Repeater

---WiFi Enabled Security Cameras

---Smart Door Locks

---Building Automation

---Smart Home & Building

---Smart Healthcare

---Industrial Sensor Controller
