Single-band 802.11N Module

  • AR9331 WiFi  AP Module M03
  • AR9331 WiFi  AP Module M03
  • AR9331 WiFi  AP Module M03
  • AR9331 WiFi  AP Module M03
  • AR9331 WiFi  AP Module M03
AR9331 WiFi  AP Module M03 AR9331 WiFi  AP Module M03 AR9331 WiFi  AP Module M03 AR9331 WiFi  AP Module M03 AR9331 WiFi  AP Module M03

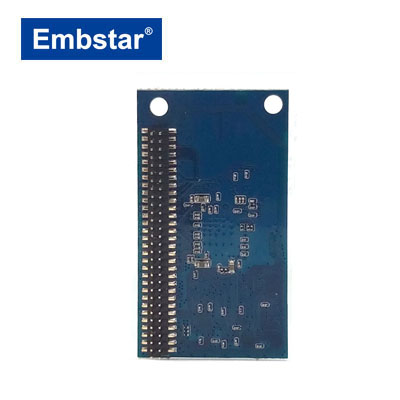

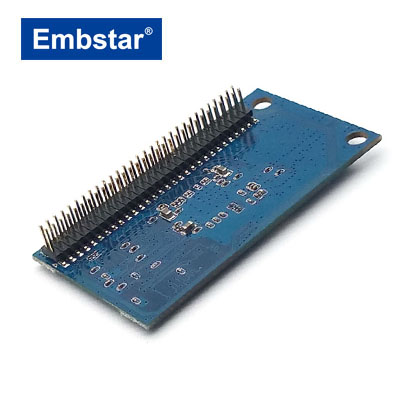

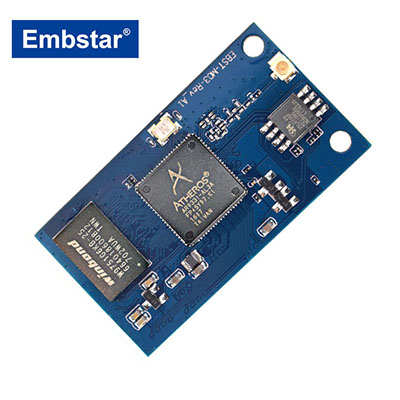

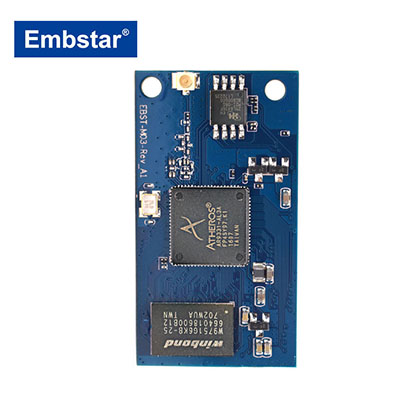

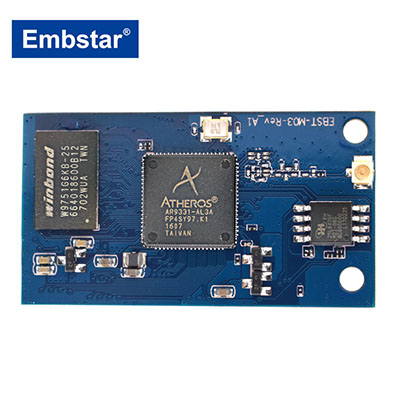

AR9331 WiFi AP Module M03

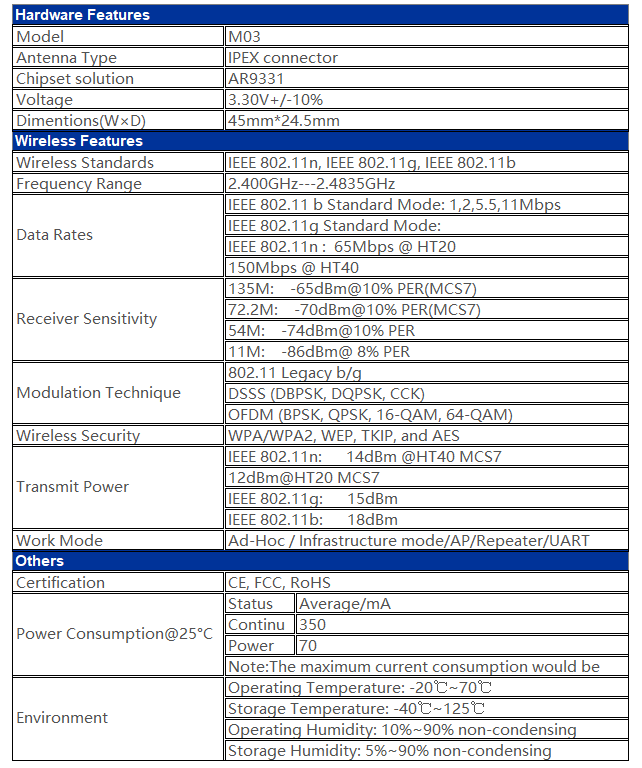

  • Antenna Type:IPEX connector
  • Chipset solution:AR9331
  • Voltage:3.30V±10%
  • Dimentions:45mm*24.5mm
  • Product description: The module M03 compliant to 802.11 b/g/n Wi-Fi Solution for low power, low-cost, and highly integrated AP and consumer electronic devices, the module requiring only a external 3.3V power supply and co
  • INQUIRY

WiFi  AP Module M03


The module M03 compliant to 802.11 b/g/n Wi-Fi Solution for low power, low-cost, and highly integrated AP and consumer electronic devices, the module requiring only a external 3.3V power supply and connection to antenna.
The module based on the single chip AR9331 which integrates an 802.11n 1×1 MAC/BB/radio with internal PA and LNA. It supports 802.11n operations up to 72 Mbps for 20 MHz and 150 Mbps for 40 MHz channel respectively, and IEEE 802.11b/g data rates.


WiFi  AP Module M03 Application:

WiFi AP

3G/4G WiFi Router

WiFi Repeater

WiFi Enabled Security Cameras

Smart Door Locks

Building Automation

Smart Home & Building

Smart Healthcare

Industrial Sensor Controller
