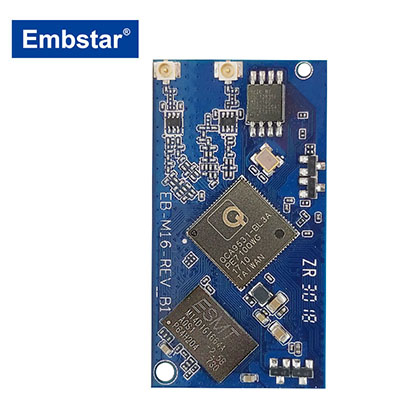

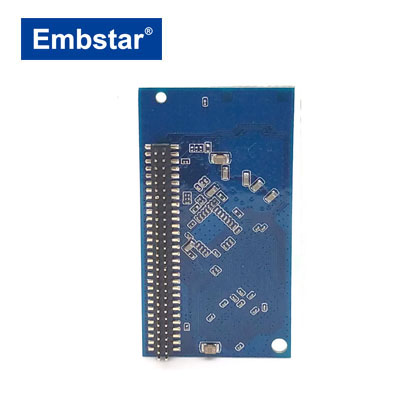

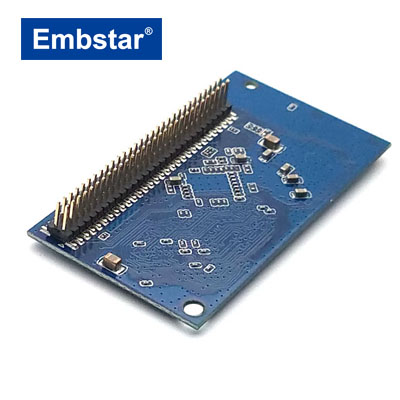

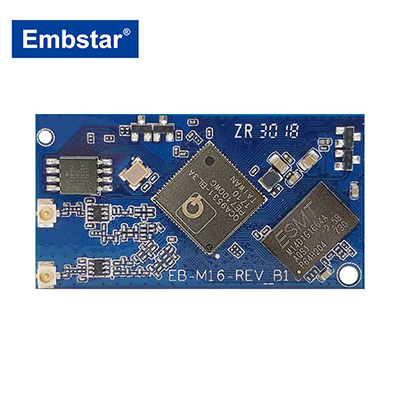

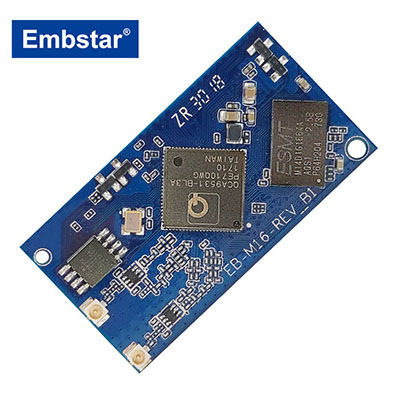

M16 WiFi AP Module Overview
M16 is a complete, small form factor 802.11 b/g/n Wi-Fi Solution optimized for low power, low-cost, and highly integrated AP and consumer electronic devices, the module integrates all Wi-Fi functionality in a package friendly to low-cost PCB design, requiring only a few external 3.3V and connection to antenna.
The module based on the single chip QCA9531 which integrates an 802.11n 2x2 MIMO MAC/BB/ radio with internal PA and LNA. It supports 802.11 n operations up to 150 Mbps for 20MHZ and 300 Mbps for 40MHZ,and 80211b/g data rates.
The module supports AP mode and client mode at the same time and include mass service application software to reduce the research and design work of customer.

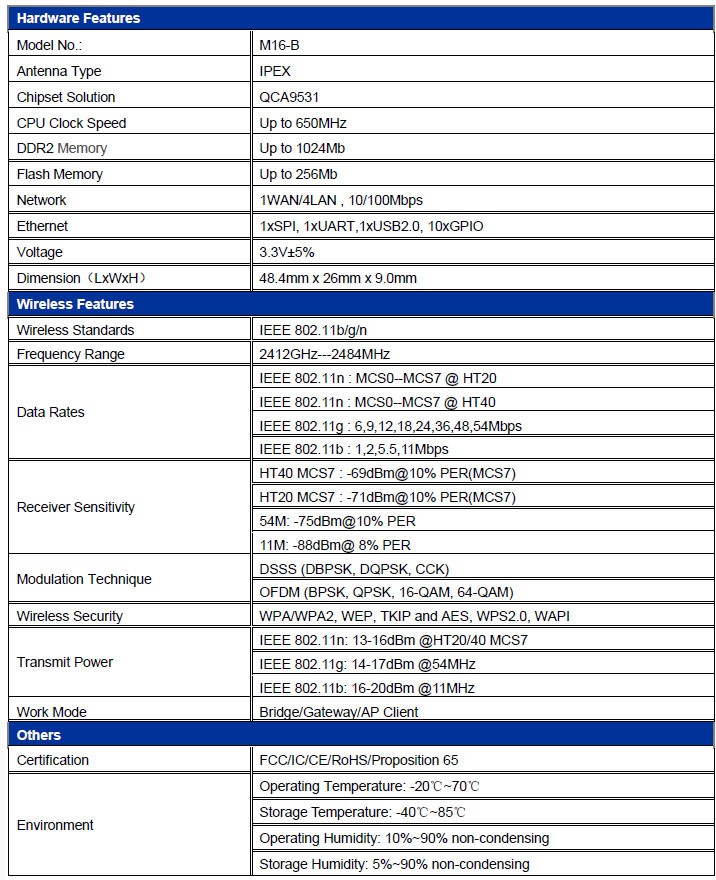

M16 WiFi AP Module Features
M16 WiFi AP Module Applicitions
---3G/4G WiFi Router
---WiFi Enabled Security Cameras
---Smart Door Locks
---Smart Home & Building
---Industrial Sensor Controller
