Single-band 802.11N Module

  • AR9331 WiFi AP Module MP21
  • AR9331 WiFi AP Module MP21
  • AR9331 WiFi AP Module MP21
  • AR9331 WiFi AP Module MP21
AR9331 WiFi AP Module MP21AR9331 WiFi AP Module MP21AR9331 WiFi AP Module MP21AR9331 WiFi AP Module MP21

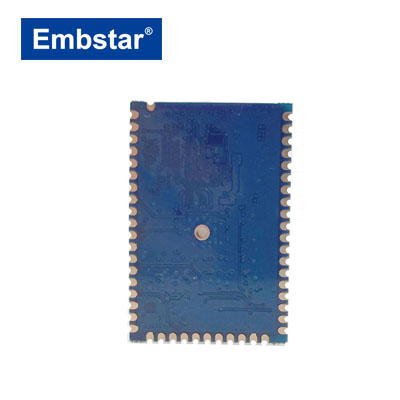

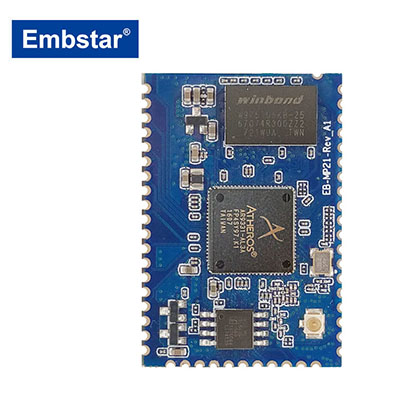

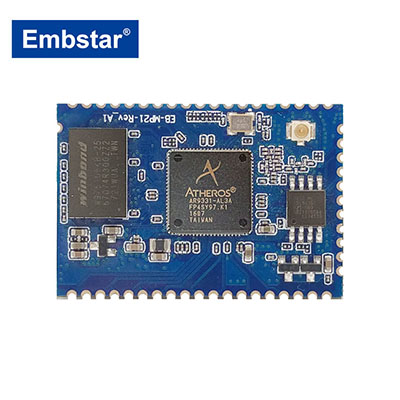

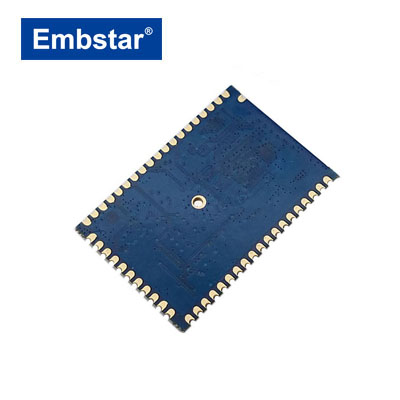

AR9331 WiFi AP Module MP21

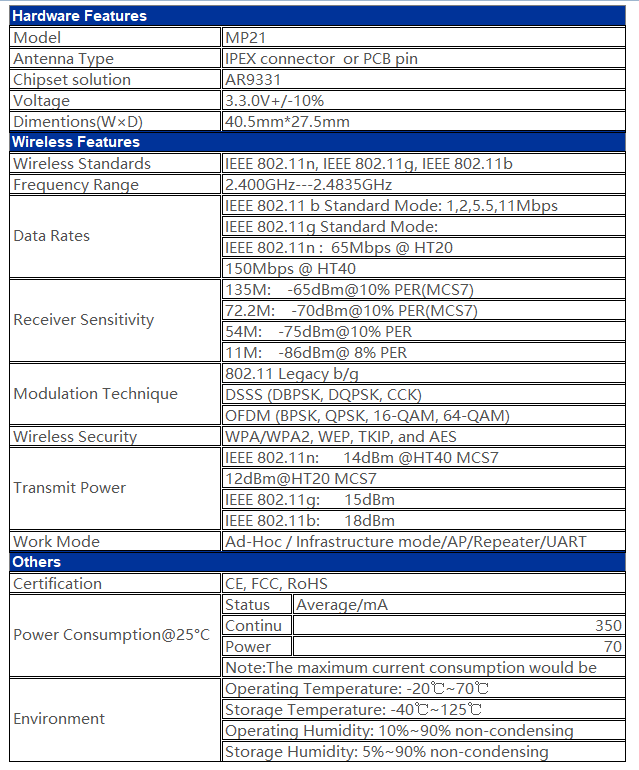

  • Annntenna:IPEX or PCB Pin
  • Chipset Solution:QCA9331
  • Voltage:3.3V±10%
  • Size:40.5mm*27.5mm
  • Product description: The module EBST-MP21 compliant to 802.11 b/g/n Wi-Fi Solution for low power, low-cost, and highly integrated AP and consumer electronic devices, the module requiring only a external 3.3V power supply
  • INQUIRY

WiFi Module MP21 Overview


The module MP21 compliant to 802.11 b/g/n Wi-Fi Solution for low power, low-cost, and highly integrated AP and consumer electronic devices, the module requiring only a external 3.3V power supply and connection to antenna.


The module based on the single chip AR9331 which integrates an 802.11n 1×1 MAC/BB/radio with internal PA and LNA. It supports 802.11n operations up to 72 Mbps for 20 MHz and 150 Mbps for 40 MHz channel respectively, and IEEE 802.11b/g data rates.

WiFi Module MP21 Application

Smart Home

Wearable Devices

Industry Control

Robot

Medical Monitoring


PREVIOUS：QCA9531 WiFi AP Module M16 NEXT：nRF 51822 Bluetooth 4.0 Module HLX-BLE-18

RELATED PRODUCTS

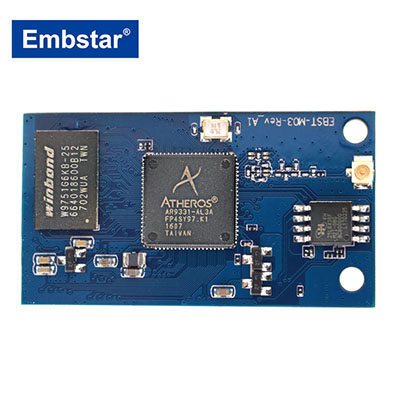

AR9331 WiFi AP Module M03

AR9331 WiFi AP Modu

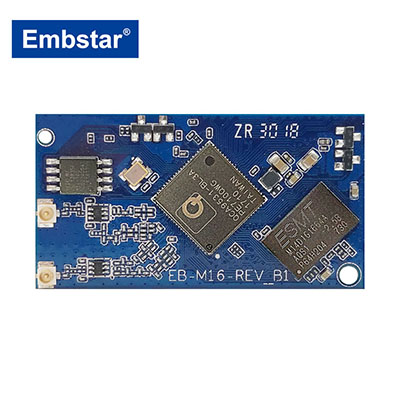

QCA9531 WiFi AP Module M16

QCA9531 WiFi AP Modu

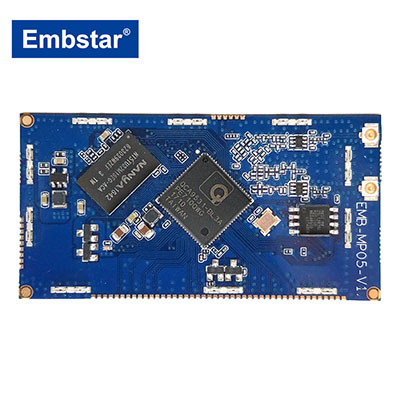

QCA9531WiFi AP Module MP05
